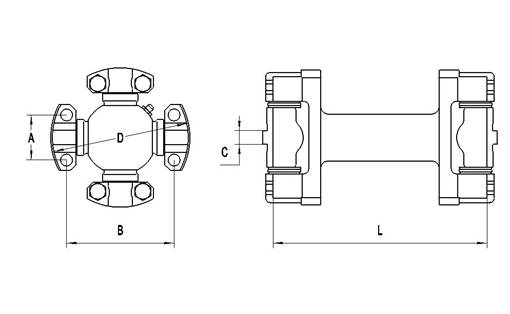

| C型 接管式萬向節 | |||||||
| 編號 | A (mm) | B (mm) | C (mm) | D (mm) | L (mm) | 規格 | 參考件號 |
| C4 | 36.52 | 87.3 | 9.5 | 107.9 | 160 | 4C | |
| C5 | 42.88 | 88.9 | 14.26 | 115.06 | 241 | 5C | |
| C1 | 42.88 | 114.3 | 14.26 | 140.46 | 270.86 | 6C | |
| C3 | 42.88 | 114.3 | 14.26 | 140.46 | 184.12 | 6C | |
| C2 | 49.2 | 117.46 | 15.85 | 148.38 | 470 | 7C | 144-10-12220 |
| C6 | 49.2 | 174.6 | 15.85 | 206 | 458.8 | 8C | |
| C7 | 71.44 | 123.8 | 15.85 | 165 | 270.8 | 8.5C | |
| C8 | 71.44 | 168.3 | 15.85 | 209.52 | 218 | 9C | |
